FreeBSD I2S

TL;DR: https://reviews.freebsd.org/D57484

So… Why?

It all started with me applying for Google Summer of Code (GSOC). For those who aren’t familiar with it, GSOC is a Google venture to promote open-source contributions to several popular organizations. FreeBSD being one of them. Listed on the FreeBSD org’s GSOC project page was this exact requirement - adding I2S audio support for the RPi 4.

Since you’re (probably) reading this on a random github blog, suffice to say I didn’t get in to GSOC. However, I don’t really care. I wanted to write a kernel driver dammit!

Raspberry Pi 4

Where do I even begin?

Very valid question for someone who’s never written a kernel driver before (IMO).

Thankfully the GSOC project description did mention that Rockchip and AllWinner I2S drivers already existed and were working. So I thouhght it would be a copy-paste 20 minute adventure. Boy was I wrong.

After making a copy of the Rockchip driver and renaming the functions to BCM2835_*, following the naming convention, I had my skeleton code.

Device Trees

While I’ve never worked on kernel drivers, thankfully Zephyr had familiarized me with a rough idea of device trees, and since the Zephyr team got the idea from the Unix kernel architecture I was just learning in reverse.

For now I just needed to know 2 things:

So guess what… I read the DOCS

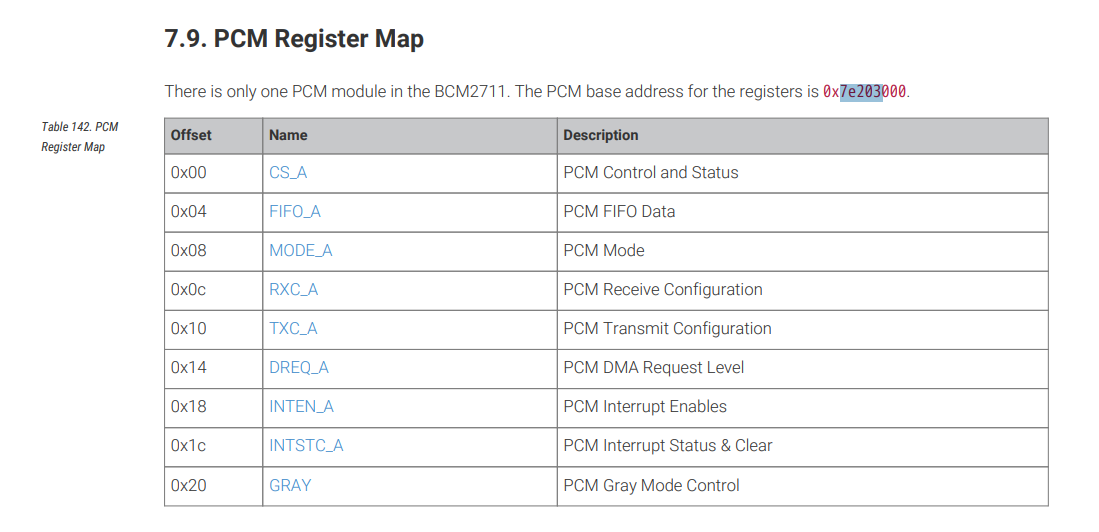

BCM2711 Register Map

So lets confirm that the kernel can see this register address.

$: ofwdump -a | grep i2s
    Node 0x4424: i2s
Node 0x4a34: i2s@7e203000

Perfect, there’s our i2s register at the exact address that the datasheet showed us. So lets write a quick device tree to enable allow us to attach to it.

ofwdump -pr /soc/i2s@7e203000 reveals all…

Node 0x4a34: i2s@7e203000
  interrupts:
    00 00 00 00 00 00 00 77 00 00 00 04
  compatible:
    62 72 63 6d 2c 62 63 6d 32 38 33 35 2d 69 32 73 00
    'brcm,bcm2835-i2s'
  reg:
    7e 20 30 00 00 00 00 24
  clocks:
    00 00 00 08 00 00 00 1f
  status:
    6f 6b 61 79 00
    'okay'
  #sound-dai-cells:
    00 00 00 00
  dmas:
    00 00 00 0c 00 00 00 02 00 00 00 0c 00 00 00 03
  dma-names:
    74 78 00 72 78 00
  pinctrl-names:
    64 65 66 61 75 6c 74 00
    'default'
  pinctrl-0:
    00 00 00 0d
  phandle:
    00 00 00 33
